Writing your first Parthenon-based Code

In this tutorial, we will walk through how to write a Parthenon-based code from scratch. We’ll build a simple toy code that rotates an ellipse in a circle, with AMR, to demonstrate the elements that make up a Parthenon code and high-level Parthenon concepts.

A full working version of the code described here is available on the Parthenon-HPC-Lab github.

Prerequisites

Parthenon requires, at a minimum, a C++20 compiler, Git, and CMake. Most real applications also require an MPI library (MPI stands for message passing interface) for parallelism. In this tutorial, we’ll also be relying on HDF5 for output and numpy, matplotlib, and h5py for visualization. On Ubuntu Linux, you can install the non-Python dependencies as

sudo apt install build-essential libmpich-dev libhdf5-mpich-dev hdf5-tools git cmake

On Mac OS, via homebrew, it is sufficient to run

brew install hdf5-mpi
brew install cmake

Note

The tutorial will build/run without MPI, but HDF5 is essential.

For Python, use your preferred Python environment. I suggest a project-specific Python virtual environment:

python -m venv .venv
source .venv/bin/activate
python -m pip install --upgrade pip
python -m pip install numpy matplotlib h5py

Note

Python and CMake can interfere with each other. I find this is especially true with Anaconda and friends, as Anaconda can install, e.g., a serial version of HDF5, which CMake finds when it configures. Thus, I recommend activating your virtual environment but leaving your conda environment inactive.

Directory structure

The most common way to include Parthenon in a project is to build it in-tree. This means creating a repository for your code and including Parthenon inside it. This typically looks like:

ellipse/
├── CMakeLists.txt
├── external
│   └── parthenon
└── src

where here I’ve assumed we named our code ellipse. The source code for the new ellipse executable will live in src, and Parthenon will live in external/parthenon. Note the CMakeLists.txt file; we’ll come back to that.

The most common way to include Parthenon in a project under Git version control is Git submodules, which allow a Git repository to be included inside another Git repository such that the source code for the dependency isn’t directly committed into the downstream project. Let’s set it up. You can get to the project structure with:

mkdir ellipse
cd ellipse
git init
mkdir external
mkdir src
touch CMakeLists.txt
git submodule add git@github.com:parthenon-hpc-lab/parthenon.git external/parthenon
git add external parthenon
git commit -m "add parthenon"

Parthenon itself also has submodules. We need to clone them for a Parthenon-based project to build. Do so via

git submodule update --init --recursive

You can now commit files and push as you normally would. If you want to update Parthenon, simply go inside the Parthenon directory inside your project, check out the relevant release or branch and pull. Then you can commit the folder as if you were working with raw source code and Git will do the right thing.

Note

Parthenon also has a Spack package (spackage). You can see details in our build doc.

The top-level `CMakeLists.txt`

CMake is a configuration language. It tells your computer how to find and tie together dependencies and builds a makefile which actually calls the compiler to build your code. The top-level CMakeLists.txt file contains some of these details. Open the file and edit it to look like this:

# This is required by the CMake standard
cmake_minimum_required(VERSION 3.26)

# Names the project ellipse
project(ellipse LANGUAGES C CXX)
# We require C++20
set(CMAKE_CXX_STANDARD 20)
# A useful command for debugging
set(CMAKE_EXPORT_COMPILE_COMMANDS On)

# This is just a safety thing, but I recommend including it. It
# forces you to build the code in a directory that isn't the same as
# your source code.
file(TO_CMAKE_PATH "${PROJECT_BINARY_DIR}/CMakeLists.txt" LOC_PATH)
if(EXISTS "${LOC_PATH}")
  message(FATAL_ERROR
   "You cannot build in a source directory (or any directory with a CMakeLists.txt file). "
   "Please make a build subdirectory. Feel free to remove CMakeCache.txt and CMakeFiles.")
endif()

# Mostly a convenience thing. If you don't specify which flags to
# compile with, CMake prefers a recipe "RelWithDebInfo" which is a
# mix of code speed and debugging. For maximum performance, specify
# -DCMAKE_BUILD_TYPE=Release. For debugging, specify
# -DCMAKE_BUILD_TYPE=Debug.
set(default_build_type "RelWithDebInfo")
if(NOT CMAKE_BUILD_TYPE AND NOT CMAKE_CONFIGURATION_TYPES)
  message(STATUS "Setting build type to '${default_build_type}' as none was specified.")
  set(CMAKE_BUILD_TYPE "${default_build_type}" CACHE
    STRING "Choose the type of build." FORCE)
  # Set the possible values of build type for cmake-gui
  set_property(CACHE CMAKE_BUILD_TYPE PROPERTY STRINGS
    "Debug" "Release" "MinSizeRel" "RelWithDebInfo")
endif()

# Parthenon can also be built standalone. But since we're building
# it as part of our ellipse project, let's disable the tests and
# example code that come with it.
set(PARTHENON_DISABLE_EXAMPLES ON CACHE BOOL "" FORCE)
set(BUILD_TESTING OFF CACHE BOOL "" FORCE)
# add Parthenon
add_subdirectory(external/parthenon parthenon)

# This command will error out currently, but we want it to tell
# CMake to look for our source code once we write some
add_subdirectory(src)

A fully-featured project may have many more things in the top-level CMake, such as code for unit tests and additional dependency handling. But we’ll stick with this for now.

Now let’s start writing some code and discussing some high-level Parthenon concepts.

High-level Parthenon concepts

A Parthenon-based project consists of:

Any number of packages, which, conceptually, own work to do and state on which to operate.
At least one problem generator which provides initial conditions for the solver.
A driver which orchestrates work.
A main function which calls a ParthenonManager to provide setup/teardown and entry into a program.

Let’s go through each of them.

Packages

In practice, a Parthenon package is a C++ namespace that contains any programs/functions you may want to include. In particular you must include an Initialize function, and you probably want to include at least one task. We’ll talk about tasks in a minute. For now, let’s create an Initialize function. We’ll follow standard C++ style and create a header file, ellipse.hpp in a new folder in src we’ll call ellipse:

mkdir src/ellipse

and in the new ellipse folder:

#ifndef _ELLIPSE_ELLIPSE_HPP_
#define _ELLIPSE_ELLIPSE_HPP_

#include <memory>

#include <parthenon/package.hpp>
#include <utils/robust.hpp>

namespace Ellipse {
using namespace parthenon::package::prelude;

// Returns true if x and y are inside an ellipse with major axis a
// and minor axis b that has been rotated by th radians.
KOKKOS_INLINE_FUNCTION
bool InsideEllipse(const Real x, const Real y, const Real a, const Real b, const Real th) {
  constexpr Real EPS = parthenon::robust::EPS();
  const Real c = Kokkos::cos(th);
  const Real s = Kokkos::sin(th);

  const Real xp =  c * x + s * y;
  const Real yp = -s * x + c * y;

  const Real aa = a * a;
  const Real bb = b * b;

  return (xp * xp) / (aa + EPS) + (yp * yp) / (bb + EPS) <= 1.0;
}

// This is going to be the name of a variable we're going to set
PAR_VAR(Ellipse, Indicator);

// Our initialize function
std::shared_ptr<StateDescriptor> Initialize(ParameterInput *pin);
// Our function that will rotate the ellipse
TaskStatus Rotate(MeshData<Real> *md, const Real new_time);

} // namespace Ellipse

#endif // _ELLIPSE_ELLIPSE_HPP_

We’ll discuss the InsideEllipse utility function and Rotate task later. For now let’s discuss the Initialize function and the PAR_VAR macro. The macro creates a C++ type that represents the name of a variable that we’re naming Ellipse.Indicator, which will be 1 when we’re inside the ellipse and 0 otherwise. The type-based variable machinery is useful as it allows us to access variables by a string-like name on GPUs, which otherwise wouldn’t work, as strings don’t function easily on GPUs. It also means typos in names are caught at compile time, rather than run time.

The Initialize function returns a std::shared_ptr (a pointer with built-in memory management) to a StateDescriptor object. A StateDescriptor object tells the Parthenon infrastructure what a package expects the infrastructure to provide so it can do its job. This may be variables on the mesh, but it might also be global variables owned/managed by a package, which we call Params. The Initialize function can also parse the input file through the ParameterInput pointer. Let’s put our Initialize function in ellipse/ellipse.cpp. It’ll look like this:

#include <cmath>
#include "ellipse.hpp"

#include <parthenon/package.hpp>
using namespace parthenon::package::prelude;

std::shared_ptr<StateDescriptor> Ellipse::Initialize(ParameterInput *pin) {
  // Creates the state descriptor object
  auto pkg = std::make_shared<StateDescriptor>("ellipse");

  // parse input deck and add params for ellipse shape.
  const Real major_axis = pin->GetOrAddReal("ellipse", "major_axis", 1.0,
                                            "Major axis of our ellipse");
  const Real minor_axis = pin->GetOrAddReal("ellipse", "minor_axis", 1.0,
                                            "Minor axis of our ellipse");
  pkg->AddParam("major_axis", major_axis);
  pkg->AddParam("minor_axis", minor_axis);

  const Real omega = pin->GetOrAddReal("ellipse", "rotation_rate", 2 * M_PI,
                                       "Rotation rate of the ellipse, in radians/s");
  pkg->AddParam("omega", omega);


  // register the indicator variable
  Metadata m({Metadata::OneCopy, Metadata::Cell});
  pkg->AddField<Indicator>(m);

  return pkg;
}

Let’s walk through what’s happening. The first line creates the StateDescriptor object and wraps it in a shared pointer, which we will return at the end of the function. The next few lines call pin->GetOrAddReal. This is Parthenon’s input parsing. We are requesting variables in the “Ellipse” section of the input deck (we’ll look at an input deck later) named “major_axis” and “minor_axis”. The first argument is the input block, the second the variable name, and the third the default value. The fourth is a Python-like docstring that Parthenon can report.

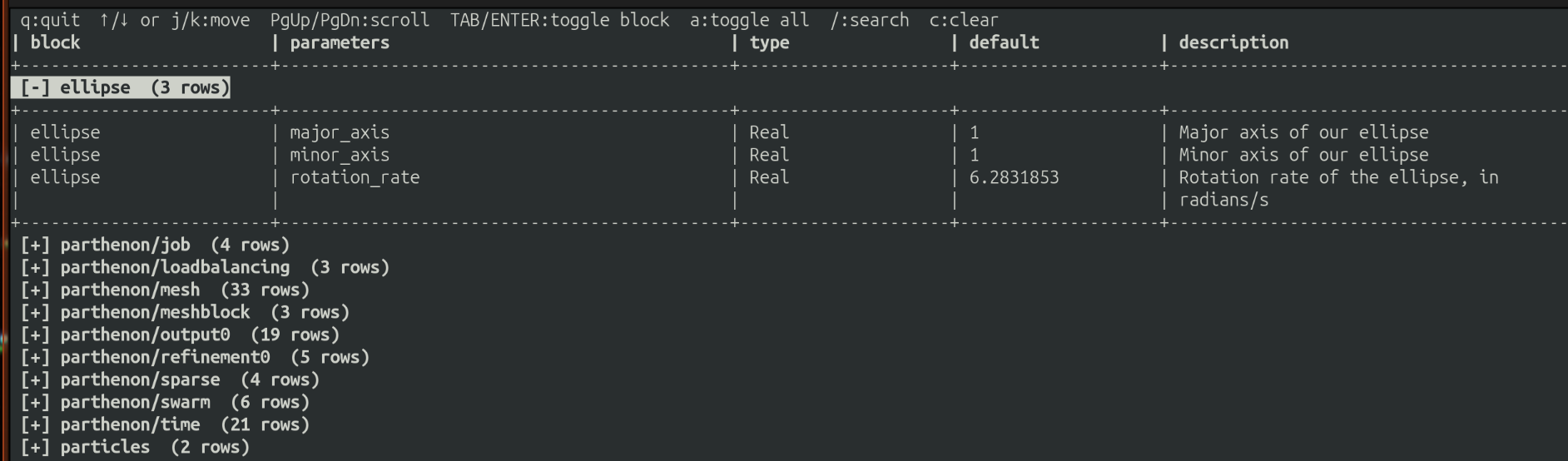

We register the major and minor axes in the package’s Params registry with pkg->AddParam, which stashes them away as constants we can access from a package. Params are a Python-like type-erasing dictionary. We’ll see how to pull data out of them later. They’re useful as a global store for simulation parameters that need to be accessed in different places throughout the code. We do the same with the rotation rate omega.

We then add the Indicator field with pkg->AddField<Indicator>(m);. This command does not allocate memory or create the field on the mesh right now. It just declares to Parthenon that the field should be available. Parthenon will handle the rest, but Initialize is called before the mesh is created. The type-based variable is passed inside the angle brackets as a template argument, but a string might also be used, e.g., pkg->AddField("Ellipse.Indicator", m);. The Metadata object passed in describes to the infrastructure the properties we want the variable to have. In this case, we want it to be cell-centered and OneCopy. The latter means that if Parthenon were to create multiple copies of state, e.g., multiple time levels in a Runge-Kutta integration, it treats this field as a shallow copy, and doesn’t deep copy it. See state management for more details.

Anatomy of a Task

Now let’s take a look at the rotate task. A task is work that you will ask Parthenon to do. You can think of it as a function or substep of the solver. The TaskStatus return value can be used to specify whether a task succeeded, failed, or needs to be re-attempted (for example because you’re waiting for an MPI message). In this case, Rotate will be the sole mechanism for updating the Indicator function that represents the position of the ellipse. It might look like:

TaskStatus Ellipse::Rotate(MeshData<Real> *md, const Real new_time) {
  // Access the state descriptor, which Parthenon holds on to
  std::shared_ptr<StateDescriptor> pkg = md->GetMeshPointer()->packages.Get("ellipse");
  // use it to pull out the major and minor axis params
  const auto a = pkg->Param<Real>("major_axis");
  const auto b = pkg->Param<Real>("minor_axis");
  const auto omega = pkg->Param<Real>("omega");

  // Create a MeshBlockPack which fuses the ellipse variable across
  // all mesh elements
  auto desc = parthenon::MakePackDescriptor<Ellipse::Indicator>(md);
  auto pack = desc.GetPack(md);

  // The size of each Meshblock object, including ghosts
  IndexRange ib = md->GetBoundsI(IndexDomain::entire);
  IndexRange jb = md->GetBoundsJ(IndexDomain::entire);
  IndexRange kb = md->GetBoundsK(IndexDomain::entire);

  parthenon::par_for(
      PARTHENON_AUTO_LABEL, 0, pack.GetNBlocks() - 1, kb.s, kb.e, jb.s, jb.e, ib.s, ib.e,
      KOKKOS_LAMBDA(const int blk, const int k, const int j, const int i) {
        auto &coords = pack.GetCoordinates(blk);
        const Real x = coords.Xc<X1DIR>(i);
        const Real y = coords.Xc<X2DIR>(j);

        bool inside = Ellipse::InsideEllipse(x, y, a, b, omega * new_time);
        pack(blk, Ellipse::Indicator(), k, j, i) = inside ? 1. : 0.;
      });

  return TaskStatus::complete;
}

This method sets Ellipse.Indicator to 1 or 0 at the new time depending on whether or not the center of a given cell is within the ellipse at the new time. (Note we’re kind of cheating here. A real solver would update based on, e.g., a time integrator, rather than simply setting the field to its exact value.) To do so, it pulls out the major axis, minor axis, and rotation rate from the package params, which it pulls out of the mesh/meshdata pointer passed in.

It then builds a SparsePack which is a fused index space over all of the MeshBlock objects in Parthenon and any requested variables. This is important, especially on GPU, for performance. See Sparse Packs for more details. Finally, it launches a loop over all cells on blocks and sets the indicator to 1 if we’re in the ellipse and 0 otherwise. The parthenon::par_for loop calls Kokkos under the hood and provides a flexible way to perform these loops. Finally we return TaskStatus::complete.

Note

Looping in Parthenon is a complex topic and Parthenon supports many options. The base loop constructs are described here, but there is also a suite of more advanced loops designed to be especially performant on both CPU and GPU that you can find here.

A Particle Package

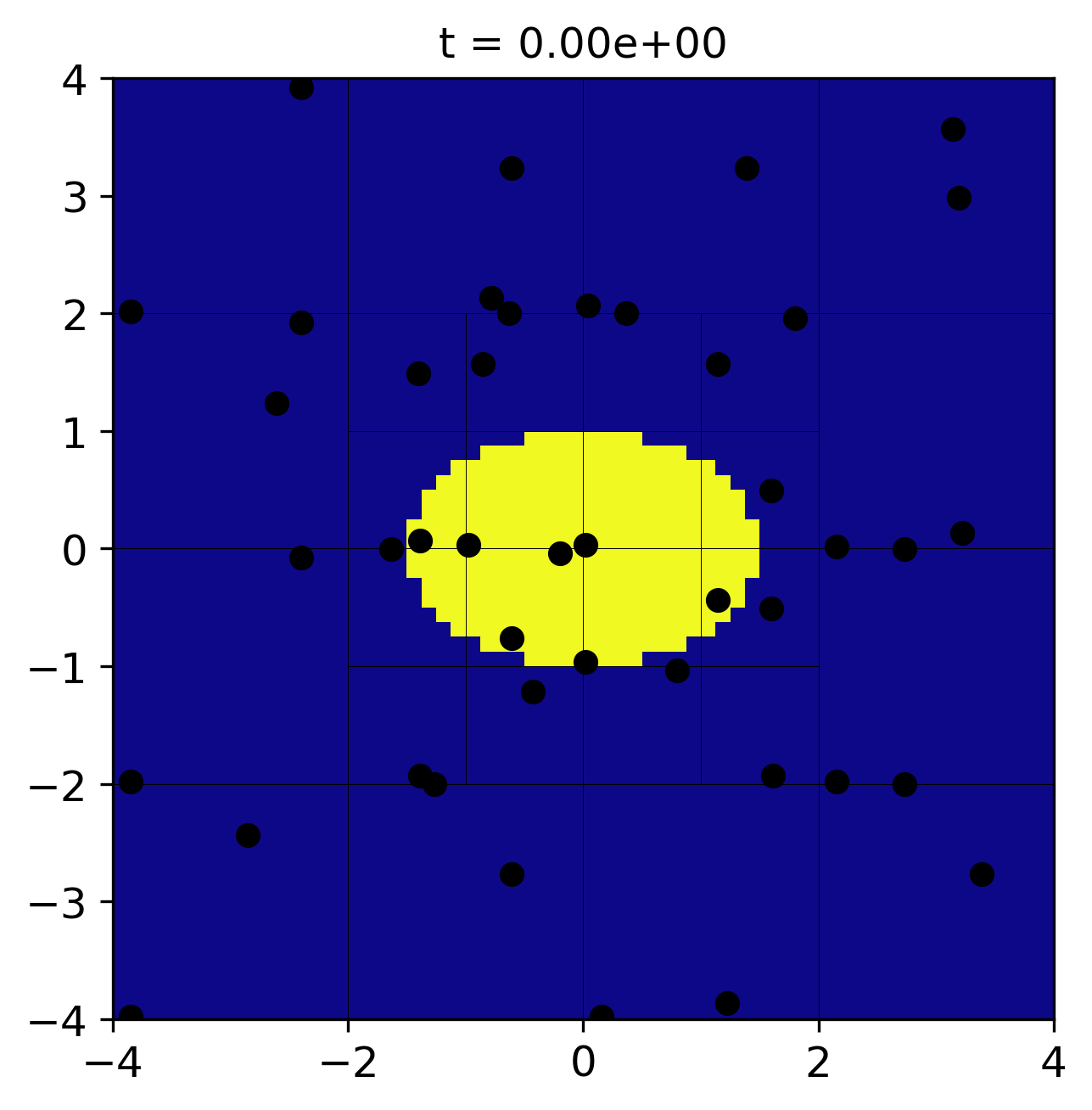

For fun, let’s also add some particles that are rotated with the ellipse. Create a new folder in src called particles and create a particles.hpp file containing:

#ifndef _PARTICLES_PARTICLES_HPP_
#define _PARTICLES_PARTICLES_HPP_

#include <memory>
#include <utility>

#include <Kokkos_Core.hpp>
#include <Kokkos_Random.hpp>

#include <parthenon/package.hpp>

namespace Particles {
using namespace parthenon::package::prelude;

// Kokkos RNGPool
typedef Kokkos::Random_XorShift64_Pool<> RNGPool;

// Given the x and y positions of a particle and a delta_theta to
// rotate it, rotates the particle by theta and returns the new x and
// y
KOKKOS_INLINE_FUNCTION
auto GetNewCoords(const Real x, const Real y, const Real dth) {
  const Real r = std::sqrt(x * x + y * y);
  const Real th = std::atan2(y, x);
  const Real thp = th + dth;

  const Real xp = r * std::cos(thp);
  const Real yp = r * std::sin(thp);

  return std::make_pair(xp, yp);
}

// This will be a variable on each particle in a swarm named "samples"
PAR_SWARMVAR(Real, samples, weight);

// Our initialize function
std::shared_ptr<StateDescriptor> Initialize(ParameterInput *pin);
// Our function that will rotate particles in the ellipse
TaskStatus Rotate(MeshData<Real> *md, const Real dt);

Real EstimateTimestep(MeshData<Real> *md);
} // namespace Ellipse

#endif // _PARTICLES_PARTICLES_HPP_

Most of this is analogous to the Ellipse package, though note the PAR_SWARM_VAR macro and the EstimateTimestep function. We’ll discuss those below.

The Initialize function in the particles.cpp file will look like:

#include "particles.hpp"

#include <limits>

#include <parthenon/package.hpp> #include <utils/robust.hpp>

using namespace parthenon::package::prelude;

std::shared_ptr<StateDescriptor> Particles::Initialize(ParameterInput *pin) {
auto pkg = std::make_shared<StateDescriptor>(“particles”);

const int npart = pin->GetOrAddInteger(“particles”, “num_particles_per_block”, 1000); pkg->AddParam(“num_particles”, npart);

// Initialize random number generator pool int rng_seed = pin->GetOrAddInteger(“particles”, “rng_seed”, 1234); pkg->AddParam(“rng_seed”, rng_seed); RNGPool rng_pool(rng_seed); pkg->AddParam(“rng_pool”, rng_pool);

Metadata swarm_metadata({Metadata::Provides, Metadata::None}); pkg->AddSwarm(“samples”, swarm_metadata);

Metadata real_swarmvalue_metadata({Metadata::Real}); pkg->AddSwarmValue(weight::name(), “samples”, real_swarmvalue_metadata);

pkg->EstimateTimestepMesh = EstimateTimestep;

// There are more package function hooks too… e.g., // pkg->PostInitializeMesh=Foo; // For Foo(Mesh*, ParameterInput*, MeshData<Real>*)

return pkg;

}

This is mostly identical to what we’ve seen before, with a number of particles to initialize per meshblock. Now, however, we add a particle swarm rather than a mesh field. We also add a swarm variable which is a quantity attached to each particle.

Note

There’s nothing stopping you from initializing particles and mesh fields in the same package. It’s up to you how you want to organize your program.

Because we’ll randomly initialize the particle positions, we also use a random number generator, which we call “rng_seed.” This is provided by Kokkos via Parthenon.

Warning

This is a particularly simple choice of seed. To prevent each MPI rank from duplicating random numbers, in full generality you should probably shift your initial seed by MPI rank.

Warning

Properly the state of the random number generator should be saved in a way that can be recovered via restart using Params. See The documentation on params for more details.

Finally, notice the pkg->EstimateTimestepMesh = EstimateTimestep line. Here we are registering the EstimateTimestep function (which we’ll see the implementation of below) with the Parthenon infrastructure. The Parthenon driver will use it to decide the maximum time step it’s allowed to take. The reason we need that here is because we’re going to actually update particle positions rather than resetting them, and they may move across the mesh. If the update is too large, the inter-meshblock comms infrastructure won’t be able to keep up.

Note

Also note the commented out code suggesting other possible routines that can be registered per-package. There are a lot of these and the best way to find them is to look in the source code at parthenon/src/interface/state_descriptor.hpp.

Now let’s add the update function to the same file. It looks like this:

TaskStatus Particles::Rotate(MeshData<Real> *md, const Real dt) {
  // Access the state descriptor for ELLIPSE
  std::shared_ptr<StateDescriptor> pkg = md->GetMeshPointer()->packages.Get("ellipse");
  // use it to pull out omega
  const auto omega = pkg->Param<Real>("omega");
  const Real dtheta = omega * dt;

  // Make a SwarmPack via types to get positions
  // x and y are automatically added to all particle swarms
  static auto desc_swarm =
      parthenon::MakeSwarmPackDescriptor<swarm_position::x, swarm_position::y>("samples");
  auto pack_swarm = desc_swarm.GetPack(md);

  parthenon::par_for(
      DEFAULT_LOOP_PATTERN, PARTHENON_AUTO_LABEL, DevExecSpace(), 0,
      pack_swarm.GetMaxFlatIndex(),
      // loop over all particles
      KOKKOS_LAMBDA(const int idx) {
        // block and particle indices
        auto [b, n] = pack_swarm.GetBlockParticleIndices(idx);
        const auto swarm_d = pack_swarm.GetContext(b);
        // particles are stored raggedly so a given index may not
        // really be an active particle
        if (swarm_d.IsActive(n)) {
          Real x = pack_swarm(b, swarm_position::x(), n);
          Real y = pack_swarm(b, swarm_position::y(), n);
          auto [xp, yp] = GetNewCoords(x, y, dtheta);
          pack_swarm(b, swarm_position::x(), n) = xp;
          pack_swarm(b, swarm_position::y(), n) = yp;
        }
      });

  return TaskStatus::complete;
}

This looks very similar to the rotate function we wrote for the ellipse package, with a few details: we now build a swarm pack instead of a sparse pack. We pack the particles’ x and y positions. Finally the loop is over particle indices, rather than cell indices.

Finally, let’s take a look at the EstimateTimestep function:

Real Particles::EstimateTimestep(MeshData<Real> *md) {
  constexpr double SAFETY = 0.5;

constexpr Real EPS = parthenon::robust::EPS();

std::shared_ptr<StateDescriptor> pkg = md->GetMeshPointer()->packages.Get(“ellipse”); const auto omega = pkg->Param<Real>(“omega”);

IndexRange ib = md->GetBoundsI(IndexDomain::entire); IndexRange jb = md->GetBoundsJ(IndexDomain::entire); IndexRange kb = md->GetBoundsK(IndexDomain::entire);

static auto desc_swarm =
parthenon::MakeSwarmPackDescriptor<swarm_position::x, swarm_position::y>(“samples”);

auto pack_swarm = desc_swarm.GetPack(md);

Real dtmin = std::numeric_limits<Real>::max(); parthenon::par_reduce(

DEFAULT_LOOP_PATTERN, PARTHENON_AUTO_LABEL, DevExecSpace(), 0, pack_swarm.GetMaxFlatIndex(), KOKKOS_LAMBDA(const int idx, Real &ldt) {

auto [b, n] = pack_swarm.GetBlockParticleIndices(idx); const auto swarm_d = pack_swarm.GetContext(b); if (swarm_d.IsActive(n)) {

// locations of x,y faces of the given block auto coords = swarm_d.GetCoords(); const Real xmin = coords.Xf<X1DIR>(ib.s); const Real xmax = coords.Xf<X1DIR>(ib.e); const Real ymin = coords.Xf<X2DIR>(jb.s); const Real ymax = coords.Xf<X2DIR>(jb.e);

// How far is a particle away from that? const Real x = pack_swarm(b, swarm_position::x(), n); const Real y = pack_swarm(b, swarm_position::y(), n); const Real r = std::sqrt(x * x + y * y);

const Real dx = std::min(std::abs(x - xmin), std::abs(xmax - x)); const Real dy = std::min(std::abs(y - ymin), std::abs(ymax - y)); const Real delta = std::min(dx, dy);

// maximum distance a particle can travel is its “linear” // speed times dt, which is r * omega * dt, which must be // less than delta: // dt <= delta / (r * omega) ldt = std::min(ldt, delta / (std::abs(r * omega) + EPS));

}

}, Kokkos::Min<Real>(dtmin));

return SAFETY * dtmin;

}

This is very much a toy heuristic for a toy problem. We simply check how far away a particle is from the boundaries of its meshblock (including ghost cells) and don’t let the particle move fast enough to leave its current block.

The problem generator

The problem generator provides initial conditions for the solver. Let’s create a new folder for it, in src:

mkdir pgen

and create a new file there for the function prototype called pgen.hpp, which should look like:

#ifndef _PGEN_PGEN_HPP_
#define _PGEN_PGEN_HPP_

#include <parthenon/package.hpp>

void SeedEllipse(parthenon::MeshBlock *pmb, parthenon::ParameterInput *pin);

#endif // _PGEN_PGEN_HPP_

The problem generator in this case operates on the state on a single MeshBlock (a coherent piece of the mesh) and may read from the ParameterInput object. Initial conditions are called after all packages have been initialized and state is set.

Note

Problem generators may be defined on a single mesh block or across the whole mesh. The signature is slightly different but they behave very similarly.

The implementation of the problem generator in this case should live in a file ellipse/src/pgen.cpp and will look like this:

#include <parthenon/package.hpp>
#include <utils/error_checking.hpp>
using namespace parthenon::package::prelude;

#include "ellipse/ellipse.hpp"
#include "particles/particles.hpp"
#include "pgen.hpp"

void SeedEllipse(parthenon::MeshBlock *pmb, parthenon::ParameterInput *pin) {
  const int ndim = pmb->pmy_mesh->ndim;
  PARTHENON_REQUIRE_THROWS(ndim >= 2, "This problem must be at least 2d");

  // get meshblock data object
  auto &data = pmb->meshblock_data.Get();

  // pull out ellipse data
  auto epkg = pmb->packages.Get("ellipse");
  const auto a = epkg->Param<Real>("major_axis");
  const auto b = epkg->Param<Real>("minor_axis");

  // Pull out particles data
  auto ppkg = pmb->packages.Get("particles");
  auto rng_pool = ppkg->Param<Particles::RNGPool>("rng_pool");
  const int N = ppkg->Param<int>("num_particles");

  // coordinates object
  auto coords = pmb->coords;

  // loop bounds for interior of meshblock. We're going to need all of
  // these for the field and particles
  const auto &cellbounds = pmb->cellbounds;
  const IndexRange ib = cellbounds.GetBoundsI(IndexDomain::interior);
  const IndexRange jb = cellbounds.GetBoundsJ(IndexDomain::interior);
  const IndexRange kb = cellbounds.GetBoundsK(IndexDomain::interior);
  const int nx_i = cellbounds.ncellsi(IndexDomain::interior);
  const int nx_j = cellbounds.ncellsj(IndexDomain::interior);
  const int nx_k = cellbounds.ncellsk(IndexDomain::interior);
  const Real dx_i = coords.Dxf<1>(pmb->cellbounds.is(IndexDomain::interior));
  const Real dx_j = coords.Dxf<2>(pmb->cellbounds.js(IndexDomain::interior));
  const Real dx_k = coords.Dxf<3>(pmb->cellbounds.ks(IndexDomain::interior));
  const Real minx_i = coords.Xf<1>(ib.s);
  const Real minx_j = coords.Xf<2>(jb.s);
  const Real minx_k = coords.Xf<3>(kb.s);

  // Set the indicator function on the mesh
  static auto desc = parthenon::MakePackDescriptor<Ellipse::Indicator>(data.get());
  auto pack = desc.GetPack(data.get());
  const int blk = 0;
  parthenon::par_for(
      PARTHENON_AUTO_LABEL, kb.s, kb.e, jb.s, jb.e, ib.s, ib.e,
      KOKKOS_LAMBDA(const int k, const int j, const int i) {
        const Real x = coords.Xc<X1DIR>(i);
        const Real y = coords.Xc<X2DIR>(j);
        bool inside = Ellipse::InsideEllipse(x, y, a, b, 0);
        pack(blk, Ellipse::Indicator(), k, j, i) = inside ? 1. : 0.;
      });

  // Create new particles to seed on the mesh
  auto swarm = data->GetSwarmData()->Get("samples");
  // Create an accessor to particles, allocate particles
  auto newParticlesContext = swarm->AddEmptyParticles(N);

  // Pull out swarm variables
  auto x = swarm->Get<Real>(swarm_position::x::name()).Get();
  auto y = swarm->Get<Real>(swarm_position::y::name()).Get();
  auto z = swarm->Get<Real>(swarm_position::z::name()).Get();
  auto weight = swarm->Get<Real>(Particles::weight::name()).Get();

  // loop over new particles created
  parthenon::par_for(
      DEFAULT_LOOP_PATTERN, PARTHENON_AUTO_LABEL, DevExecSpace(), 0,
      newParticlesContext.GetNewParticlesMaxIndex(),
      // new_n ranges from 0 to N_new_particles
      KOKKOS_LAMBDA(const int new_n) {
        // this is the particle index inside the swarm
        const int n = newParticlesContext.GetNewParticleIndex(new_n);
        // Use a mutex lock to get device-safe random number generator
        auto rng_gen = rng_pool.get_state();

        // Normally b would be free-floating and set by pack.GetBlockparticleIndices
        // but since we're on a single meshblock for this loop, it's just 0
        // because block index = 0
        const int blk = 0;

        // Randomly sample particles
        x(n) = minx_i + nx_i * dx_i * rng_gen.drand();
        y(n) = minx_j + nx_j * dx_j * rng_gen.drand();
        z(n) = minx_k + nx_k * dx_k * rng_gen.drand();

        // set weights to 1 if inside the ellipse, 0 otherwise
        weight(n) = Ellipse::InsideEllipse(x(n), y(n), a, b, 0) ? 1 : 0;


        // release random number generator
        rng_pool.free_state(rng_gen);
      });

  return;
}

The first half of this function should look very familiar. We loop over the mesh and set the ellipse indicator variable for t = 0. The second half of the function is a little novel but should also look very similar. The key new piece is this line:

auto newParticlesContext = swarm->AddEmptyParticles(N);

which tells the swarm on this block to add N new particles. Note we also pull out the swarm variables from the swarm by hand, rather than using the pack. This is necessary for new particles, but only works on a single meshblock, not when fusing loops over blocks:

// Pull out swarm variables
auto &x = swarm->Get<Real>(swarm_position::x::name()).Get();
auto &y = swarm->Get<Real>(swarm_position::y::name()).Get();
auto &z = swarm->Get<Real>(swarm_position::z::name()).Get();
auto &weight = swarm->Get<Real>(Particles::weight::name()).Get();

The loop below then loops over only the newly created particles and then randomly samples their positions:

// Randomly sample particles
x(n) = minx_i + nx_i * dx_i * rng_gen.drand();
y(n) = minx_j + nx_j * dx_j * rng_gen.drand();
z(n) = minx_k + nx_k * dx_k * rng_gen.drand();

Finally, we set the particle weights to 1 inside the ellipse and 0 outside.

Note

Another exercise left to the reader: We have hinted at several ways the particle weights may be set to something non-trivial. How would you renormalize the weights so they sum to 1? Note you need to know the total particle count across the entire mesh. And each MPI rank may have its own set of meshblocks with its own set of particles.

The Driver

We’re now ready to write the driver, a C++ class that inherits from Parthenon primitives. As before, let’s create a new folder for it and put the driver class declaration in ellipse/driver/ellipse_driver.hpp. The declaration should look like:

#ifndef _DRIVER_ELLIPSE_DRIVER_HPP_
#define _DRIVER_ELLIPSE_DRIVER_HPP_

#include <parthenon/driver.hpp>

class EllipseDriver : public parthenon::EvolutionDriver {
 public:
  EllipseDriver(parthenon::ParameterInput *pin, parthenon::ApplicationInput *app_in,
                parthenon::Mesh *pm)
      : parthenon::EvolutionDriver(pin, app_in, pm) {}
  parthenon::TaskCollection MakeTaskCollection();
  parthenon::TaskListStatus Step();
};

inline parthenon::TaskListStatus EllipseDriver::Step() {
    return MakeTaskCollection().Execute();
}

#endif // _DRIVER_ELLIPSE_DRIVER_HPP_

Parthenon provides a number of drivers, including a base class, a Driver class, and a MultiStageDriver. Each one provides specific hooks that must be overloaded to build the “main loop” of the solver. In the case of the EvolutionDriver, the only thing we need to overwrite is Step, but we’ll also use the tasking infrastructure, so we make Step trivially just call the tasking machinery, and move all the work into our implementation of MakeTaskCollection.

Note

Because Step is a virtual function of EvolutionDriver, we must define it outside the class definition to conform to C++ linking rules.

Note

In this example, we use the simple EvolutionDriver but for most applications, you probably want the MultiStageDriver. For more details on driver customization points, see our documentation.

Warning

Particles are currently “single-stage,” meaning there is only one copy of state for all particles. This makes it difficult to use the multistage driver to implement, e.g., RK algorithms for particles.

The core concept of the Parthenon driver is the TaskCollection. The idea is to express what you want Parthenon to do, and the relationship between units of work, or tasks. This is more free-form than saying “do A, then do B, then do C.” Instead, it says “A and B can run independently, but both must finish before C.” The way this is expressed in code is the AddTask method. The syntax looks like:

auto newtaskid = tl.AddTask(dependency, TaskFunction, arguments...)

where the dependency is a collection of task IDs that must be done before the new task can start. TaskID dependencies are combined via the | operator. In other words, in the prior example with Task C we might say:

auto C = tl.AddTask(A | B, DoC, args...);

DoC should be the name of the function that does the task. These are the functions we wrote before, like Particles::Rotate. The function doesn’t get called here, though. Parthenon calls it later. Thus the arguments for it to call must be passed to AddTask. Usually the MeshData object, which owns data on some subset of the mesh, is what we pass in. But we might also pass in things like the current simulation time.

The reason to express things in this way is that it allows Parthenon to reorder work or to pick up work while waiting for other work to complete. This can be relevant, for example, with MPI communication, as Parthenon can send messages, then do as much work as it can while waiting for them to be received. It thus allows Parthenon to overlap communication and computation and better scale to large core counts.

Our task list implementation will live in a new file, ellipse/src/driver/ellipse_driver.cpp and looks like:

#include "ellipse_driver.hpp"

#include <amr_criteria/refinement_package.hpp>
#include <interface/update.hpp>
#include <parthenon/driver.hpp>
#include <parthenon/package.hpp>
using namespace parthenon::driver::prelude;
using namespace parthenon::package::prelude;
using namespace parthenon;

#include "ellipse/ellipse.hpp"
#include "particles/particles.hpp"

parthenon::TaskCollection EllipseDriver::MakeTaskCollection() {
  TaskCollection tc;
  TaskID none(0);
  const BlockList_t &blocks = pmesh->block_list;

  // tm is a SimTime object owned by the driver automatically
  const Real tnow = tm.time;
  const Real dt = tm.dt;
  const Real tnext = tnow + dt;

  // The driver also owns a pointer to the mesh, pmesh
  auto partitions = pmesh->GetDefaultBlockPartitions();
  const int num_partitions = partitions.size();

  TaskRegion &region0 = tc.AddRegion(partitions.size());
  for (int i = 0; i < partitions.size(); i++) {
    auto &tl = region0[i];
    // Gets the collection of meshdata on this partition
    auto &md = pmesh->mesh_data.Add("base", partitions[i]);

    // Rotate the ellipse indicator on the mesh
    auto rotate_mesh = tl.AddTask(none, Ellipse::Rotate, md.get(), tnext);

    // rotate the particles
    auto rotate_part = tl.AddTask(none, Particles::Rotate, md.get(), dt);

    // Particle boundary exchange
    auto reset_comms =
        tl.AddTask(rotate_part, parthenon::ResetSwarmsCommunicationMesh, md);
    auto send_part = tl.AddTask(reset_comms | rotate_part, parthenon::SendSwarmsMesh, md);
    auto receive_part = tl.AddTask(send_part | reset_comms | rotate_part,
                                   parthenon::ReceiveSwarmsMesh, md);

    // If we had mesh variables we needed to communicate, we would
    // also want these lines. Currently they don't do anything
    auto start_send = tl.AddTask(none, parthenon::StartReceiveBoundaryBuffers, md);
    auto boundaries = parthenon::AddBoundaryExchangeTasks(rotate_mesh | start_send, tl,
                                                          md, pmesh->multilevel);

    // This line also is trivial as there's currently no fill derived
    // functions registered. These can get registered per-package or
    // per-application.
    auto fill_derived =
        tl.AddTask(boundaries | receive_part,
                   Update::FillDerived<MeshData<Real>>, md.get());

    // This task is not needed unless you use sparse variables
    auto dealloc = tl.AddTask(fill_derived, parthenon::SparseDealloc, md.get());

    // This one we do need. It computes the new timestep after the update
    auto new_dt =
        tl.AddTask(dealloc, Update::EstimateTimestep<MeshData<Real>>, md.get());

    // And this one tells parthenon which blocks to refine/derefine
    if (pmesh->adaptive) {
      auto tag_refine =
          tl.AddTask(new_dt, parthenon::Refinement::Tag<MeshData<Real>>, md.get());
    }
  }
  return tc;
}

The TaskCollection is, intuitively, a collection of TaskList objects. Each task in a given TaskList is tied to some portion of the mesh, called a Partition. The default number of partitions the code uses is set at runtime, but you can code your own regions of different sizes with different partitions in a task list if you want to. The above code loops over partitions and then registers the tasks for the task list associated with that partition inside the loop. The body of that loop will become the body of Parthenon’s main loop. The important part for us is really just these two lines:

// Rotate the ellipse indicator on the mesh
auto rotate_mesh = tl.AddTask(none, Ellipse::Rotate, md.get(), tnext);

// rotate the particles
auto rotate_part = tl.AddTask(none, Particles::Rotate, md.get(), dt);

which tell Parthenon that it can rotate the particles and the ellipse on the mesh with no dependencies within a step. (The end of each step is blocking.)

After the particle positions have been updated, they must be communicated across the mesh, which is the role of the next set of tasks:

// Particle boundary exchange
auto reset_comms =
    tl.AddTask(rotate_part, parthenon::ResetSwarmsCommunicationMesh, base);
auto send_part = tl.AddTask(reset_comms | rotate_part, parthenon::SendSwarmsMesh, md);
auto receive_part = tl.AddTask(send_part | reset_comms | rotate_part,
                               parthenon::ReceiveSwarmsMesh, md);

These are built-in Parthenon functions; you simply need to call them. They depend on the particle update being complete.

The next few tasks are included here but they don’t do anything because our ellipse indicator field isn’t sparse and doesn’t require ghost zone exchange, and there are no FillDerived methods registered. But these tasks are typically included in real solvers:

// If we had mesh variables we needed to communicate, we would
// also want these lines. Currently they don't do anything
auto start_send = tl.AddTask(none, parthenon::StartReceiveBoundaryBuffers, md);
auto boundaries = parthenon::AddBoundaryExchangeTasks(rotate_mesh | start_send, tl,
                                                      md, pmesh->multilevel);

// This line also is trivial as there's currently no fill derived
// functions registered. These can get registered per-package or
// per-application.
auto fill_derived =
    tl.AddTask(boundaries | receive_part,
               Update::FillDerived<MeshData<Real>>, md.get());

// This task is not needed unless you use sparse variables
auto dealloc = tl.AddTask(fill_derived, parthenon::SparseDealloc, md.get());

Finally, we have to call Parthenon’s built-in functions for computing AMR criteria and the time step for the next iteration. Note this time step function calls the estimate time step function we wrote in the ellipse.cpp file for the Ellipse package:

// This one we do need. It computes the new timestep after the update
auto new_dt =
    tl.AddTask(dealloc, Update::EstimateTimestep<MeshData<Real>>, md.get());

// And this one tells parthenon which blocks to refine/derefine
if (pmesh->adaptive) {
  auto tag_refine =
      tl.AddTask(new_dt, parthenon::Refinement::Tag<MeshData<Real>>, md.get());
}

Most of these pre-defined tasks are defined in the interface/update.hpp header provided by Parthenon. And that covers the driver. The Refinement::Tag task is available in amr_criteria/refinement_package.hpp. For more details on tasking, see our documentation.

Parthenon manager and the main function

We’re finally ready to write the entry point to the solver. In ellipse/src let’s add a new file main.cpp. Here are the contents:

#include <memory>

#include "parthenon_manager.hpp"

#include "driver/ellipse_driver.hpp"
#include "ellipse/ellipse.hpp"
#include "particles/particles.hpp"
#include "pgen/pgen.hpp"

int main(int argc, char *argv[]) {
  using parthenon::ParthenonManager;
  using parthenon::ParthenonStatus;
  using parthenon::ParameterInput;
  ParthenonManager pman;

  // Tell Parthenon to read our package initialize functions
  pman.app_input->ProcessPackages = [](std::unique_ptr<ParameterInput> &pin) {
    parthenon::Packages_t packages;
    packages.Add(Ellipse::Initialize(pin.get()));
    packages.Add(Particles::Initialize(pin.get()));
    return packages;
  };
  // Tell Parthenon to use our initial conditions function
  pman.app_input->ProblemGenerator = SeedEllipse;

  // call ParthenonInit to initialize MPI and Kokkos, parse the input deck, and set up
  auto manager_status = pman.ParthenonInitEnv(argc, argv);
  if (manager_status == ParthenonStatus::complete) {
    pman.ParthenonFinalize();
    return 0;
  }
  if (manager_status == ParthenonStatus::error) {
    pman.ParthenonFinalize();
    return 1;
  }

  // Now that ParthenonInit has been called and setup succeeded, the code can now
  // make use of MPI and Kokkos.
  // This needs to be scoped so that the driver object is destructed before Finalize
  pman.ParthenonInitPackagesAndMesh();
  {
    // Initialize the driver
    EllipseDriver driver(pman.pinput.get(), pman.app_input.get(), pman.pmesh.get());

    // This line actually runs the simulation
    auto driver_status = driver.Execute();
  }
  // call MPI_Finalize and Kokkos::finalize if necessary
  pman.ParthenonFinalize();
  // MPI and Kokkos can no longer be used

  return (0);
}

The ParthenonManager object is a utility class that owns most of the machinery needed to set up and tear down a Parthenon program. The top of the main function assigns the function pointers pman.app_input->ProcessPackages and pman.app_input->ProblemGenerator. You can set them to whatever you want, but here we’ll set the problem generator to the one we specified and we’ll use an anonymous function to add the two packages we wrote. If you haven’t seen that syntax before, it’s equivalent to a Python lambda expression.

The remainder of this file is standard Parthenon boilerplate. ParthenonInitEnv reads the input deck and calls MPI and Kokkos setup functions. ParthenonInitPackagesAndMesh actually calls ProcessPackages, allocates memory, builds the mesh, and calls the ProblemGenerator.

Note

The problem generator may be called many times during initialization, as initial conditions are required to check AMR criteria and the mesh may refine multiple times during initialization.

We then create the driver we wrote and call Execute, which runs the program. Note that this code is inside a block scope. This is because any Kokkos views that may be created during the simulation must be cleaned up and go out of scope by the time ParthenonFinalize is called. Otherwise, Kokkos will complain.

The src-level CMakeLists file

This concludes all the source code we need to write. Let’s add the CMakeLists.txt for the source directory. It should be named ellipse/src/CMakeLists.txt and it should look like:

add_executable(ellipse
  main.cpp

  driver/ellipse_driver.cpp
  driver/ellipse_driver.hpp

  ellipse/ellipse.cpp
  ellipse/ellipse.hpp

  particles/particles.cpp
  particles/particles.hpp

  pgen/pgen.cpp
  pgen/pgen.hpp
  )


# Make sure cmake can find our code in our source directory
target_include_directories(ellipse PUBLIC
  $<BUILD_INTERFACE:${CMAKE_CURRENT_SOURCE_DIR}>
)

# Tell CMake we depend on Parthenon
target_link_libraries(ellipse PRIVATE Parthenon::parthenon)

# Silence annoying psabi warnings
target_compile_options(ellipse
  PRIVATE
  $<$<AND:$<COMPILE_LANGUAGE:CXX>,$<CXX_COMPILER_ID:GNU>>:-Wno-psabi>
)

which tells CMake to define an ellipse executable with the source files we wrote and to link against Parthenon as a dependency.

The input file

Let’s also create an input file. For simplicity, let’s put it at the top level and let’s name it ellipse/parthinput.ellipse. It can look like this:

<parthenon/job>
problem_id = ellipse # The output file prefix

<parthenon/time>
tlim = 1 # the time to run to

<parthenon/mesh>
refinement = adaptive
numlevel = 2

nx1 = 32
x1min = -4.0
x1max = 4.0
ix1_bc = outflow
ox1_bc = outflow

nx2 = 32
x2min = -4.0
x2max = 4.0
ix2_bc = outflow
ox2_bc = outflow

nx3 = 1
x3min = -0.5
x3max = 0.5

# How many meshblocks to use in a premade default kernel.
# A value of <1 means use the whole mesh.
pack_size = 1

<parthenon/meshblock>
nx1 = 8
nx2 = 8
nx3 = 1

<parthenon/refinement0>
field = Ellipse.Indicator       # the name of the variable we want to refine on
method = derivative_order_1     # selects the first derivative method
refine_tol = 0.5                # tag for refinement if |(dfield/dx)/field| > refine_tol
derefine_tol = 0.05             # tag for derefinement if |(dfield/dx)/field| < derefine_tol
max_level = 2                   # if set, limits refinement level from this criterion to no greater than max_level

<ellipse>
major_axis = 1.5
minor_axis = 1.0

<particles>
num_particles_per_block = 1
rng_seed = 1234

<parthenon/output0>
dt = 0.05 # 20 outputs
file_type = hdf5
variables = Ellipse.Indicator # the field to output
swarms = samples # The swarm to output
samples_variables = samples.weight # positions automatically output

Each name in angle brackets indicates an input block containing key-value pairs. You can see many of the parameters we chose to parse in the packages we wrote. Let’s talk about the blocks that may need some explanation. The <parthenon/mesh> block contains mesh parameters. nx1, nx2 and nx3 here define the number of cells on the base mesh. By convention, Parthenon uses x1 for x, x2 for y, etc., as a given simulation may not always be in Cartesian coordinates. The ix1_bc is the lower boundary for x, here outflow. x1min and x1max are the bounds of the x coordinates.

Note

nx3 is set to 1, but it still has bounds, centered about 0. That is because this is a 2D simulation. But cells in Parthenon are always 3D and have extent in the trivial directions.

The refinement=adaptive flag tells Parthenon to do AMR. numlevel=2 says it’s allowed to refine once for a total of two mesh levels. More on that in a minute.

The <parthenon/meshblock> block describes the shape of a MeshBlock, a logical component of the mesh. MeshBlocks always have the same logical size. The mesh needs to evenly divide into meshblocks axis-by-axis. This of course means the third direction also needs to be trivial for this example.

The <parthenon/refinement0> block is a refinement block. You can have as many as you like. Here we are telling Parthenon to refine on the derivative of the Ellipse.Indicator field we defined, i.e., to resolve the surface of the ellipse. For more details, see our documentation.

Finally, the <parthenon/output0> block is an output block. Like the refinement criteria blocks, you can have as many as you like. In this case, we output at intervals of 0.05 time units in HDF5 format. We also list the variables we want to output. For more details, see our documentation.

Building and running a simulation

After all is said and done, your ellipse folder should look like this:

ellipse/
├── CMakeLists.txt
├── external
│   └── parthenon
│       ├── Many contents...
├── parthinput.ellipse
└── src
    ├── CMakeLists.txt
    ├── driver
    │   ├── ellipse_driver.cpp
    │   └── ellipse_driver.hpp
    ├── ellipse
    │   ├── ellipse.cpp
    │   └── ellipse.hpp
    ├── main.cpp
    ├── particles
    │   ├── particles.cpp
    │   └── particles.hpp
    └── pgen
        ├── pgen.cpp
        └── pgen.hpp

To build your new code, make a new folder and change directory into it. This folder can be anywhere, so long as you don’t build in the top level source directory itself. I call it build:

mkdir build
cd build

Then from within build, call cmake with a path to the ellipse project:

cmake /path/to/ellipse

You should see output like this:

-- The C compiler identification is GNU 15.2.0
-- The CXX compiler identification is GNU 15.2.0
-- Detecting C compiler ABI info
-- Detecting C compiler ABI info - done
-- Check for working C compiler: /usr/bin/cc - skipped
-- Detecting C compile features
-- Detecting C compile features - done
-- Detecting CXX compiler ABI info
-- Detecting CXX compiler ABI info - done
-- Check for working CXX compiler: /usr/bin/c++ - skipped
-- Detecting CXX compile features
-- Detecting CXX compile features - done
-- Setting build type to 'RelWithDebInfo' as none was specified.
-- Looking for C++ include filesystem
-- Looking for C++ include filesystem - found
-- Performing Test CXX_FILESYSTEM_NO_LINK_NEEDED
-- Performing Test CXX_FILESYSTEM_NO_LINK_NEEDED - Success
-- Performing Test CMAKE_HAVE_LIBC_PTHREAD
-- Performing Test CMAKE_HAVE_LIBC_PTHREAD - Success
-- Found Threads: TRUE
-- Found MPI_CXX: /usr/lib/aarch64-linux-gnu/mpich/lib/libmpichcxx.so (found version "4.1")
-- Found MPI: TRUE (found version "4.1") found components: CXX
-- Found HDF5: /usr/lib/aarch64-linux-gnu/hdf5/mpich/libhdf5.so;/usr/lib/aarch64-linux-gnu/libcrypto.so;/usr/lib/aarch64-linux-gnu/libcurl.so;/usr/lib/aarch64-linux-gnu/libsz.so;/usr/lib/aarch64-linux-gnu/libz.so;/usr/lib/aarch64-linux-gnu/libdl.a;/usr/lib/aarch64-linux-gnu/libm.so (found version "1.14.6") found components: C
-- Setting default Kokkos CXX standard to 20
-- Kokkos version: 5.1.1
-- The project name is: Kokkos
-- Kokkos is configured for CMake languages CXX compilation (using GNU version 15.2.0)
-- SERIAL backend is being turned on to ensure there is at least one Host space. To change this, you must enable another host execution space and configure with -DKokkos_ENABLE_SERIAL=OFF.
-- Using -std=c++20 for C++20 standard as feature
-- Built-in Execution Spaces:
--     Device Parallel: NoTypeDefined
--     Host Parallel: NoTypeDefined
--       Host Serial: SERIAL
--
-- Architectures:
-- Using bundled desul_atomics copy (desul/desul@68f8e83926657f2669712a12e97ec71fd59b72a6)
-- Performing Test KOKKOS_LINK_OPTIONS_CHECK
-- Performing Test KOKKOS_LINK_OPTIONS_CHECK - Success
-- Using bundled mdspan copy (kokkos/mdspan@5d4eb209c77f4744980c0b0c2af44636cc81b08b)
-- Kokkos Backends: SERIAL
-- PAR_LOOP_LAYOUT='SIMDFOR_LOOP' (default par_for wrapper layout)
-- PAR_LOOP_INNER_LAYOUT='SIMDFOR_INNER_LOOP' (default par_for_inner wrapper layout)
-- COORDINATE_TYPE = UniformCartesian
-- Found Git: /usr/bin/git (found version "2.53.0")
-- Configuring done (1.3s)
-- Generating done (0.1s)

This means CMake successfully configured your code and generated a makefile. If this doesn’t work, it is likely because you are missing a dependency, like MPI or HDF5, or that CMake is unable to find a dependency you have installed.

Note

Parthenon and Kokkos support a variety of options for, e.g., building on GPU. Check out both our build doc as well as the Kokkos documentation for all options.

Now you can compile with

make -j6

The -j6 flag specifies to build with 6 cores. I strongly recommend building in parallel, as builds for large C++ projects can be slow. When the build is complete, you will find an executable in build/src/ellipse. Run it as:

./src/ellipse -i /path/to/parthinput.ellipse

This is an MPI executable, so you can run it in parallel with

mpirun -n 6 ./src/ellipse -i /path/to/parthinput.ellipse

and it should generate a bunch of output and produce many files with the postfix .phdf and with .phdf.xdmf. The former are Parthenon HDF5 files. The latter are XML files that tell visualization tools such as VisIt and ParaView how to read the HDF5 files. You can manually inspect a phdf file, e.g., as follows:

user@computer:build$ h5ls -r ellipse.out0.final.phdf
/                        Group
/Blocks                  Group
/Blocks/derefinement_count Dataset {28, 1}
/Blocks/loc.level-gid-lid-cnghost-gflag Dataset {28, 5}
/Blocks/loc.lx123        Dataset {28, 3}
/Blocks/xmin             Dataset {28, 2}
/Ellipse.Indicator       Dataset {28, 1, 8, 8}
/Info                    Group
/Input                   Group
/Levels                  Dataset {28}
/Locations               Group
/Locations/x             Dataset {28, 9}
/Locations/y             Dataset {28, 9}
/Locations/z             Dataset {28, 2}
/LogicalLocations        Dataset {28, 3}
/Params                  Group
/VolumeLocations         Group
/VolumeLocations/x       Dataset {28, 8}
/VolumeLocations/y       Dataset {28, 8}
/VolumeLocations/z       Dataset {28, 1}
/samples                 Group
/samples/SwarmVars       Group
/samples/SwarmVars/samples.weight Dataset {37}
/samples/SwarmVars/swarm.id Dataset {36}
/samples/SwarmVars/swarm.x Dataset {36}
/samples/SwarmVars/swarm.y Dataset {36}
/samples/SwarmVars/swarm.z Dataset {36}
/samples/counts          Dataset {28}
/samples/offsets         Dataset {28}

An HDF5 file is like its own filesystem, containing Group objects that correspond to folders and Dataset objects that contain data and correspond to files. The Blocks, Info, Input, and LogicalLocations groups contain Parthenon-internal metadata. Note that the Input deck you ran the code with is stashed in Input. The VolumeLocations group contains the positions of cell centers. Note that the dataset VolumeLocations/x is shaped 28 by 8. That is because there are 28 blocks and each block had 8 cells in the x direction. The samples group was created because we created a particle swarm named samples. Each dataset in that group is a swarm variable and there is one index per variable, hence the datasets are length 36.

Note

The counts and offsets datasets are a bit special. They are how Parthenon identifies which particle is sitting on which meshblock.

Note also the Ellipse.Indicator dataset. That’s our indicator field for whether or not we’re in the ellipse. Its shape is 28 by 1 by 8 by 8. That corresponds, from left to right, to the block index, the z index, the y index, and the x index, typically called b, k, j, i.

Note

An exercise left to the reader: How would you compute the surface area of the ellipse, given the weights? Note you must do so at t=0, not later, due to the outflow boundary conditions.

Parthenon ships with some simple visualization tooling. In the directory where you ran the simulation, run

python /path/to/ellipse/external/parthenon/scripts/python/packages/parthenon_tools/parthenon_tools/movie2d.py --swarm samples Ellipse.Indicator ellipse.out0.*.phdf --render --movie-filename ellipse

Assuming you have ffmpeg installed on your computer, this will generate 20 frames, one for each output file, and an MP4 file ellipse.mp4. The movie should look something like this:

Note

The parthenon_tools package can be installed from within the Parthenon Python packages folder with pip install parthenon_tools. It includes a few other utilities.

The particles that pass out through our outflow boundaries are lost forever, but the others follow the ellipse rotation. Try playing with the settings of the plotting script and the simulation.

Docstrings

Parthenon also provides a mechanism for looking at the “docstrings” discussed above for each input parameter actually touched. If you run the code with the -p flag, this is output to terminal as a csv file and the simulation is not run:

./src/ellipse -i -p /path/to/parthinput.ellipse

You can also use the pretty_params script in the parthenon_tools python package to look at this as a nicely formatted ascii table:

./src/ellipse -p -i /path/to/parthinput.ellipse | python /path/to/ellipse/external/parthenon/scripts/python/packages/parthenon_tools/parthenon_tools/pretty_params.py

and the output looks something like this:

+-------------------------+---------------------------------------------+---------------------+--------------------+------------------------------------------------------------------------+
| block                   | parameters                                  | type                | default            | description                                                            |
+=========================+=============================================+=====================+====================+========================================================================+
| ellipse                 | major_axis                                  | Real                | 1                  | Major axis of our ellipse                                              |
+-------------------------+---------------------------------------------+---------------------+--------------------+------------------------------------------------------------------------+
| ellipse                 | minor_axis                                  | Real                | 1                  | Minor axis of our ellipse                                              |
+-------------------------+---------------------------------------------+---------------------+--------------------+------------------------------------------------------------------------+
| ellipse                 | rotation_rate                               | Real                | 6.2831853          | Rotation rate of the ellipse, in radians/s                             |
+-------------------------+---------------------------------------------+---------------------+--------------------+------------------------------------------------------------------------+
| parthenon/job           | output_params_and_exit                      | bool                | 0                  | output a description of all input parameters accessed and quit         |
+-------------------------+---------------------------------------------+---------------------+--------------------+------------------------------------------------------------------------+
| parthenon/job           | output_params_block_regex                   | string              | (.*)               | when outputting input parameters, this selects which input blocks to   |
|                         |                                             |                     |                    | output; all are output by default                                      |
+-------------------------+---------------------------------------------+---------------------+--------------------+------------------------------------------------------------------------+
| parthenon/job           | problem_id                                  | string              | parthenon          | prefix for output files                                                |
+-------------------------+---------------------------------------------+---------------------+--------------------+------------------------------------------------------------------------+

but with many more lines. You can also access an “interactive” version of the table (though it is still read only) by passing the -i flag to pretty_params:

./src/ellipse -p -i /path/to/parthinput.ellipse | python /path/to/ellipse/external/parthenon/scripts/python/packages/parthenon_tools/parthenon_tools/pretty_params.py -i

and that looks something like this:

Conclusion

This concludes the tutorial. Take a look at the rest of our documentation for more details and advanced topics.

Writing your first Parthenon-based Code

Prerequisites

Directory structure

The top-level CMakeLists.txt

High-level Parthenon concepts

Packages

Anatomy of a Task

A Particle Package

The problem generator

The Driver

Parthenon manager and the main function

The src-level CMakeLists file

The input file

Building and running a simulation

Docstrings

Conclusion

The top-level `CMakeLists.txt`
